Foton Scenery G7 monitoring ambulance is mainly used for emergency medical rescue
Your trusted medical rescue solution
Applications
This Foton G7 ambulance is a special emergency vehicle designed for on-site first aid and patient transportation. Equipped with professional medical equipment, it can monitor and treat the injured and sick during transit. It is widely used in pre-hospital first aid, in-hospital transfer, disaster relief, and the response to public health emergencies. It features a stable chassis, a comfortable medical cabin, strong power, and reliable safety performance.
- Transfer Ambulance: Basic monitoring to meet routine transfer needs
- Monitoring Ambulance: The main vehicle type for urban 120 emergency centers
- Negative-pressure Ambulance: Used for the transfer of patients with infectious diseases, COVID-19, and fever of unknown origin
- Neonatal/Maternal-Infant Ambulance: Equipped with special incubators, oxygen supply and monitoring equipment to protect the safety of newborns
Why choose our Foton G7 monitoring ambulance?
- Wide ambulance coverage: monitoring type, ambulance type, negative pressure type, intensive care type, neonatal/maternal and infant ambulance, etc.
- Medical compartment layout: The medical cabin is spacious and rationally arranged, capable of accommodating an automatic loading stretcher, 2 medical staff, and multiple sets of medical equipment, with smooth operation flow.
- Complete medical configuration: Standard-equipped 10L oxygen cylinder + oxygen supply control system, aluminum alloy guide rail type infusion stand, medical anti-slip and corrosion-resistant PVC floor, independent front and rear air conditioners, ultraviolet disinfection lamp, 500W inverter + 220V/12V sockets, meeting basic first aid and transfer needs.
- Layout: Separate driving area and medical cabin to guarantee operating space.
- High operational efficiency: Right-side electric sliding door and upward-swinging rear door enable faster stretcher loading/unloading and patient entry/exit; 100W siren + I-shaped warning light + strobe light provide clear warnings at night and in severe weather.
Comprehensive Safety Protection
- Warning system: warning lights, sirens, loudspeakers, and identification paint
- Medical cabin: non-slip, mildew-resistant, easy to clean, corrosion-resistant
- Stable and reliable: high speed and stability ensure safe treatment during transportation
- Negative pressure vehicle: Efficient filtration to prevent cross-infection
Technical Specifications
|
Truck name
|
Foton G7 Ambulance Vehicle
|
|
|
Driving type 4x2
|
|
2 seats, with A/C, LHD
|
|
|
Overall dimensions (L x W x H)
|
5340x1695x2460mm
|
|
Wheel base (mm)
|
3050
|
|
|
Tare Weight
|
2000
|
|
Gross Vehicle Weight
|
2860
|
|
Max. driving speed (km/h)
|
90
|
|
|
Model
|
4K22D4M
|
|
Horse power
|
160hp
|
|
Displacement
|
2.4L
|
|
Emission standard
|
Euro 6
|
|
Gearbox
|
6 forwards & 1 reverse
|
|
Tire
|
7.00R16, 6pcs with 1 spare
|
|
Walkie talkie
|
| |
1
|
pair
|
|
|
Stainless steel trash can
|
1
|
each
|
|
|
Rear door bench seat armrests
|
1
|
each
|
|
|
Fixed infusion bottle hook
|
2
|
each
|
|
|
Video
Drawing
Main Components
-

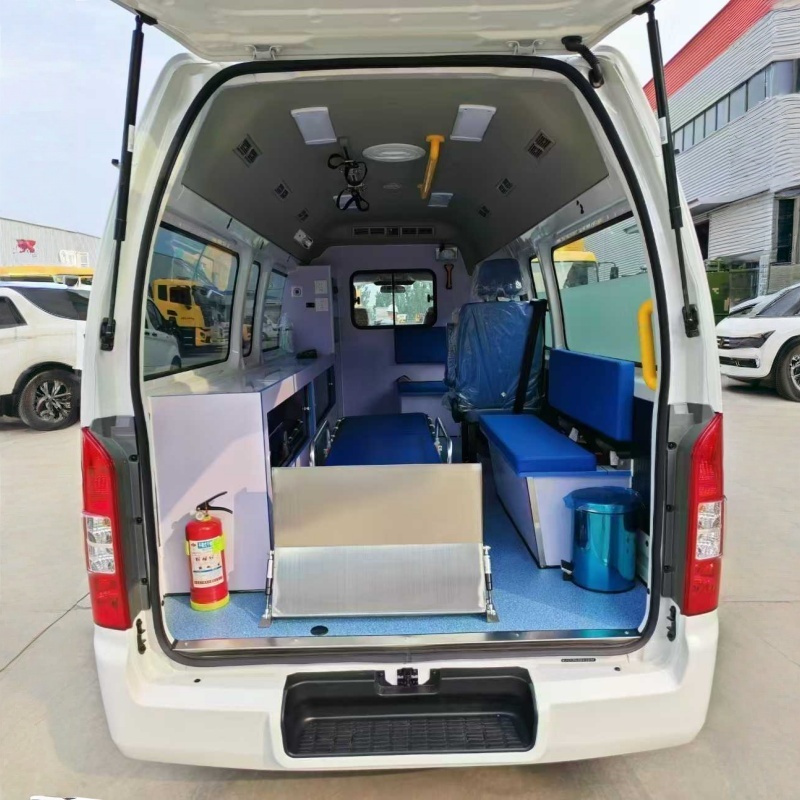

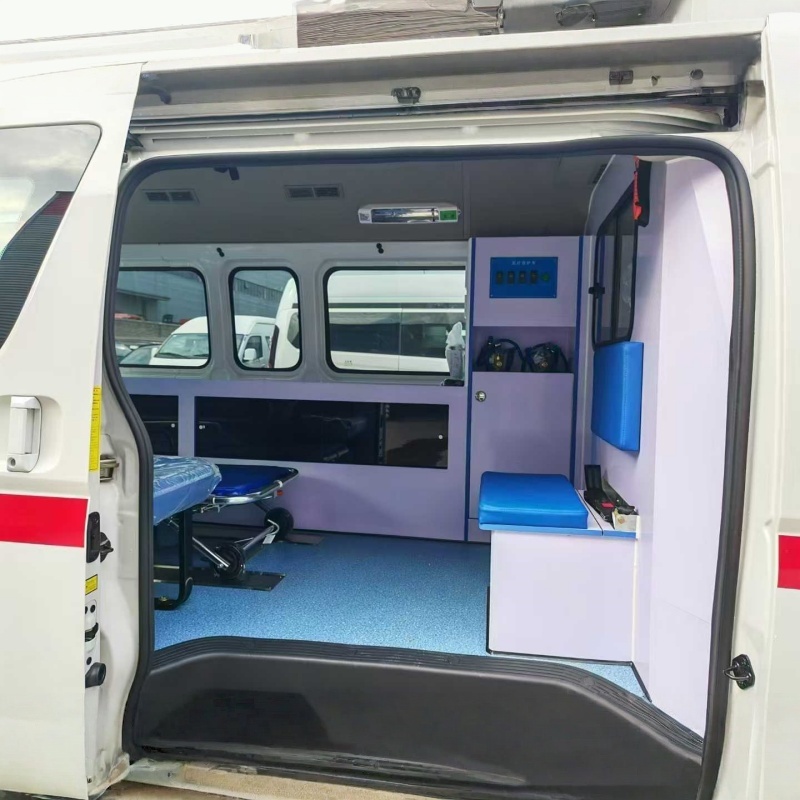

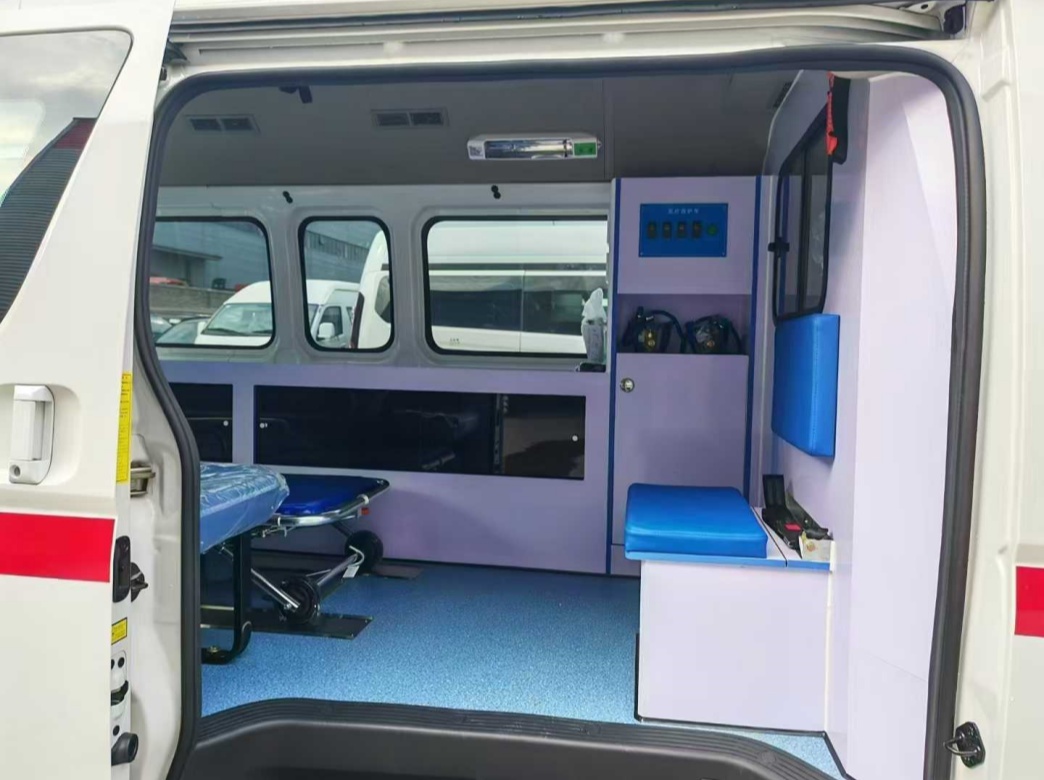

Interior view of the medical cabin
LED lighting and surgical lamps are installed on the top of the medical cabin. The cold light design reduces tissue thermal damage and saves energy
-
-
-
-
Rescue capsule
It is a core workspace of ambulances specially used for pre-hospital first aid and patient transportation
-
Emergency stretcher
Lifting emergency stretcher, facilitating medical staff in getting on and off the vehicle for operation
-
Oxygen cylinder
Provide patients with immediate and continuous oxygen supply to save lives and stabilize their conditions.
Reliable Warranty & Global Support
- 12-Month Warranty: Full vehicle coverage (excluding wear parts) for your peace of mind.
- Instant Technical Support: 24/7 technical feedback with immediate solutions for any fault.
- Free Operator Training: Free operation training: On-site or remote training on safety specifications for medical compartments and equipment operation.
- Global Parts Supply: Fast delivery of original Foton parts and medical compartment parts to minimize downtime.
- Multi-Brand Support: Professional diagnostic guidance even for your existing fleet of other brands.
Frequently Asked Questions
Q: How long is the delivery period for a customized Foton ambulance?
A: Standard configurations are usually ready in 15–25 days. Custom painting or specific emission requirements may take up to 35 days.
Q: Does the truck come with a certification for international standards?
A: Yes, our aerial work platforms comply with ISO and CE standards, and the FOTON chassis meets global quality benchmarks.
Q: Can this truck operate in narrow city streets?
A: Absolutely. The FOTON chassis is designed with a compact turning radius, making it highly maneuverable for urban maintenance.
Q: What are your shipping conditions?
A:Normally,we transport trucks via roll-on/roll-off ships, bulk carriers, and containers. Spare parts are packed in wooden cases and transported by container.
Q: Can you fully customize according to my requirements?
A: Yes. We have a professional R&D team and can accurately produce products according to your requirements.
